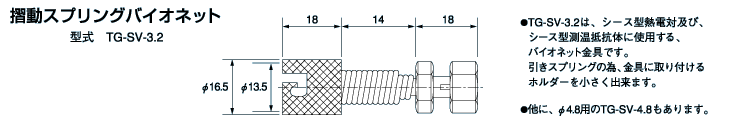

付属部品
|

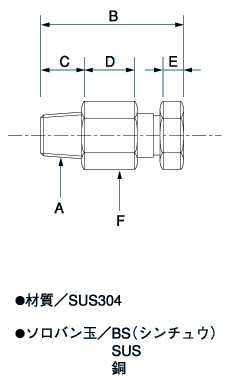

コンプレッション フィッティング
| 型式 | 適用シース径 | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|---|
| CF1/8-1.0 | Φ1.0 | PT1/8 | 30 | 9 | 12 | 5 | 13×14.8 | |
| CF1/8-1.6 | Φ1.6 | PT1/8 | 30 | 9 | 12 | 5 | 13×14.8 | |
| CF1/8-2.3 | Φ2.3 | PT1/8 | 30 | 9 | 12 | 5 | 13×14.8 | |
| CF1/8-3.2 | Φ3.2 | PT1/8 | 30 | 9 | 12 | 5 | 13×14.8 | |
| CF1/8-4.8 | Φ4.8 | PT1/8 | 30 | 9 | 12 | 5 | 13×14.8 | |
| CF1/4-1.6 | Φ1.6 | PT1/4 | 38 | 12 | 14 | 7 | 17×19.6 | |
| CF1/4-2.3 | Φ2.3 | PT1/4 | 38 | 12 | 14 | 7 | 17×19.6 | |
| CF1/4-3.2 | Φ3.2 | PT1/4 | 38 | 12 | 14 | 7 | 17×19.6 | |
| CF1/4-4.8 | Φ4.8 | PT1/4 | 38 | 12 | 14 | 7 | 17×19.6 | |
| CF1/4-6.4 | Φ6.4 | PT1/4 | 38 | 12 | 14 | 7 | 17×19.6 | |
| CF1/4-8.0 | Φ8.0 | PT1/4 | 38 | 12 | 14 | 7 | 17×19.6 | |
| CF3/8-3.2 | Φ3.2 | PT3/8 | 40 | 13 | 15 | 7 | 19×21.9 | |
| CF3/8-4.8 | Φ4.8 | PT3/8 | 40 | 13 | 15 | 7 | 19×21.9 | |
| CF3/8-6.4 | Φ6.4 | PT3/8 | 40 | 13 | 15 | 7 | 19×21.9 | |
| CF3/8-8.0 | Φ8.0 | PT3/8 | 40 | 13 | 15 | 7 | 19×21.9 | |
| CF1/2-3.2 | Φ3.2 | PT1/2 | 49 | 17 | 15 | 10 | 23×26.5 | |
| CF1/2-4.8 | Φ4.8 | PT1/2 | 49 | 17 | 15 | 10 | 23×26.5 | |
| CF1/2-6.4 | Φ6.4 | PT1/2 | 49 | 17 | 15 | 10 | 23×26.5 | |
| CF1/2-8.0 | Φ8.0 | PT1/2 | 49 | 17 | 15 | 10 | 23×26.5 |
|
固定ニップル ルーズニップル
| 型式 |
適用シース径 及びパイプ径 | A | B | C | D |
|---|---|---|---|---|---|---|
| M6 | Φ4以下 | M8P1.25 | 10 | 4 | 10×11.3 | |
| M8 | Φ5以下 | M8P1.5 | 10 | 5 | 13×14.9 | |
| M10 | Φ6以下 | M10P1.5 | 10 | 5 | 13×14.9 | |
| PT1/8 | Φ6以下 | PT1/8 | 10 | 7 | 14×16 | |
| PS1/8 | Φ6以下 | PS1/8 | 10 | 7 | 14×16 | |
| PT1/4 | Φ8以下 | PT1/4 | 13 | 7 | 17×19.6 | |
| PS1/4 | Φ8以下 | PS1/4 | 13 | 7 | 17×19.6 | |
| PT3/8 | Φ10以下 | PT3/8 | 15 | 8 | 19×21.9 | |
| PS3/8 | Φ10以下 | PS3/8 | 15 | 8 | 19×21.9 | |
| PT1/2 | Φ16以下 | PT1/2 | 17 | 10 | 23×26.5 | |
| PF1/2 | Φ16以下 | PF1/2 | 17 | 10 | 23×26.5 | |
| PT3/4 | Φ21.7以下 | PT3/4 | 20 | 10 | 32×36.7 | |
| PS3/4 | Φ21.7以下 | PS3/4 | 20 | 10 | 32×36.7 | |
| PT1 | Φ27.2以下 | PT1 | 25 | 10 | 36×39.8 | |
| PS1 | Φ27.2以下 | PS1 | 25 | 10 | 36×39.8 |
|

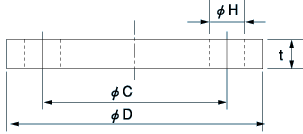

固定フランジ JIS規格
| 型式 | ガス管の呼び径 | ΦD | ΦC | I | ΦH |
|---|---|---|---|---|---|---|
| 5K-10A | 3/8″ | 75 | 55 | 9 | 12 | |
| 5K-15A | 1/2″ | 80 | 60 | 9 | 12 | |
| 5K-20A | 3/4″ | 85 | 65 | 10 | 12 | |
| 5K-25A | 1″ | 95 | 75 | 10 | 12 | |
| 10K-15A | 1/2″ | 95 | 70 | 12 | 15 | |
| 10K-20A | 3/4″ | 100 | 75 | 14 | 15 | |
| 10K-25A | 1″ | 125 | 90 | 14 | 19 |
|
